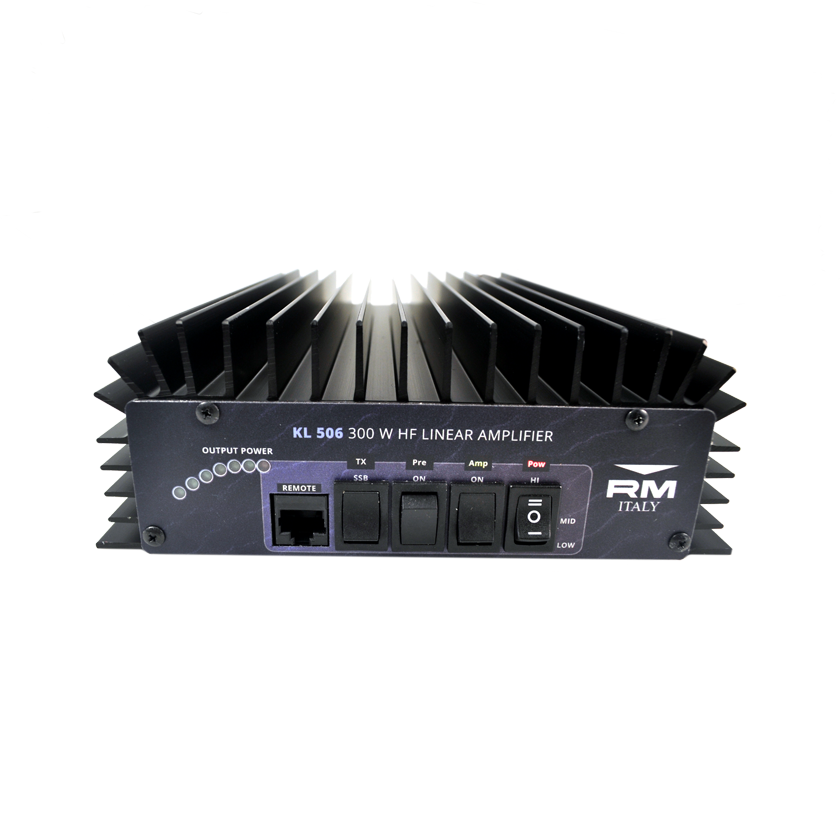

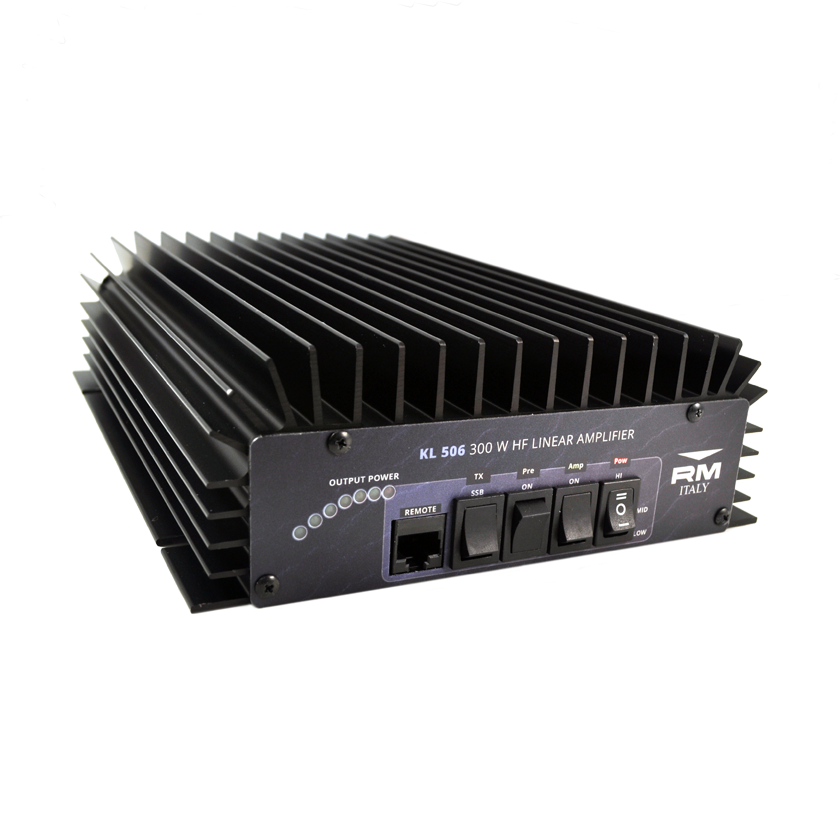

KL506
Electronic switch • Inversion polarity protection • Receiving 26 dB antenna preamplifier, to be used also when the amplifier is not working • Remote control connector
Alimentazione | 12-14 Vcc |
---|---|
Frequenza | HF |
Corrente assorbita | 14-20 A |
Potenza in ingresso | 1-5 W |
ROS d'ingresso | 2-10 W |
Potenza in uscita | 150 W MAX |
ROS d'uscita | 300 W pep MAX |
Modalità | AM-FM-SSB-CW |
Fusibile | 2×12 A |
Livello potenza in uscita | 2 |
Misure | 109x225x35 mm |
Peso | 605 gr. |
Click to download
