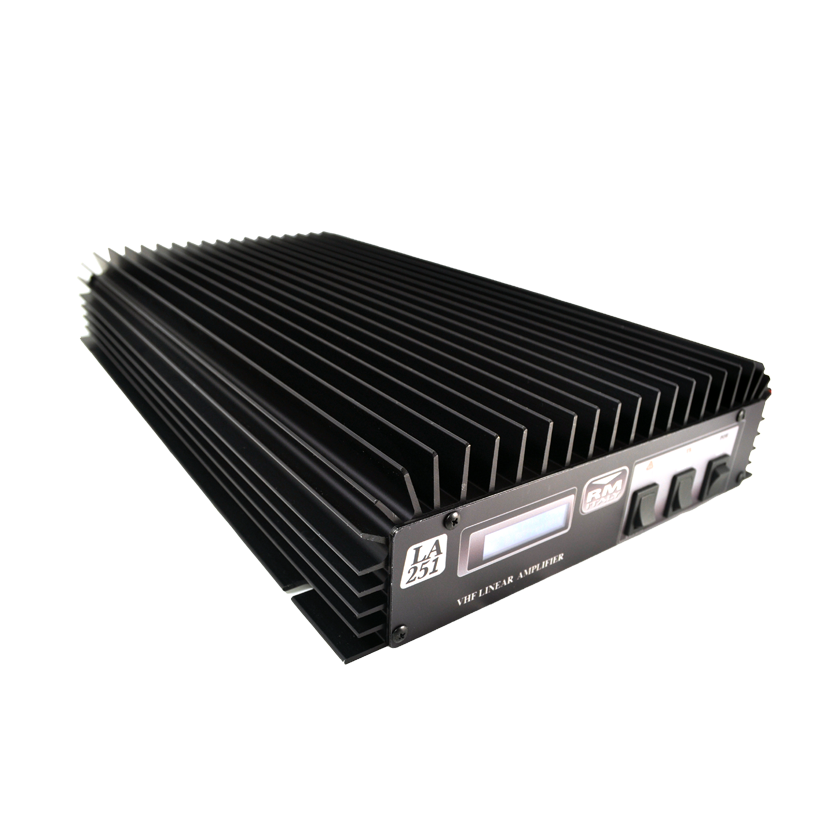

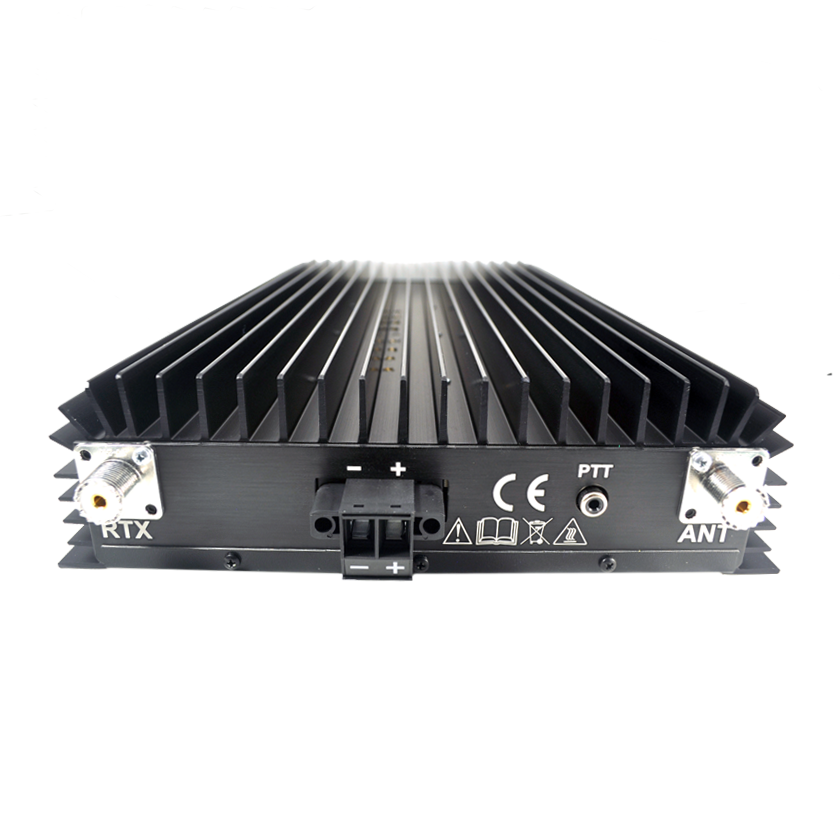

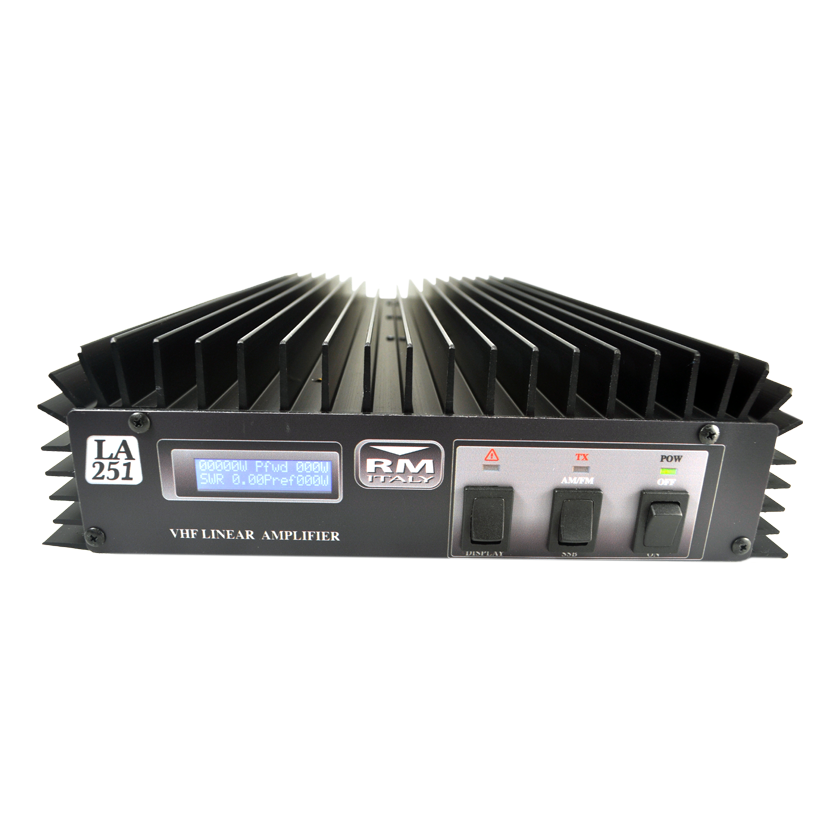

LA 251
The LA 251 is a 200W 12V linear amplifier for use in the VHF 150 – 160 MHz band, with an input power of 1 – 15 W. The LA 251 has an illuminated LCD display where all the parameters of the apparatus are indicated. It also features protection for excessive antenna VSWR, excessive input power and over temperature.
Technical Specifications :
- Frequency: 150—160 MHz
- Power Supply: 13VDC+/- 1V 40A
- Input Power: 1-20W max (All modes)
- Output Power: 170W @1dB Gain Compression
- Input VSWR: 1.1-1.5:1
- Fuse: 3x10A (5x20mm Fast)
- Dimensions: L 420 W 240 H 67 mm
- Weight: 4.090 Kg
