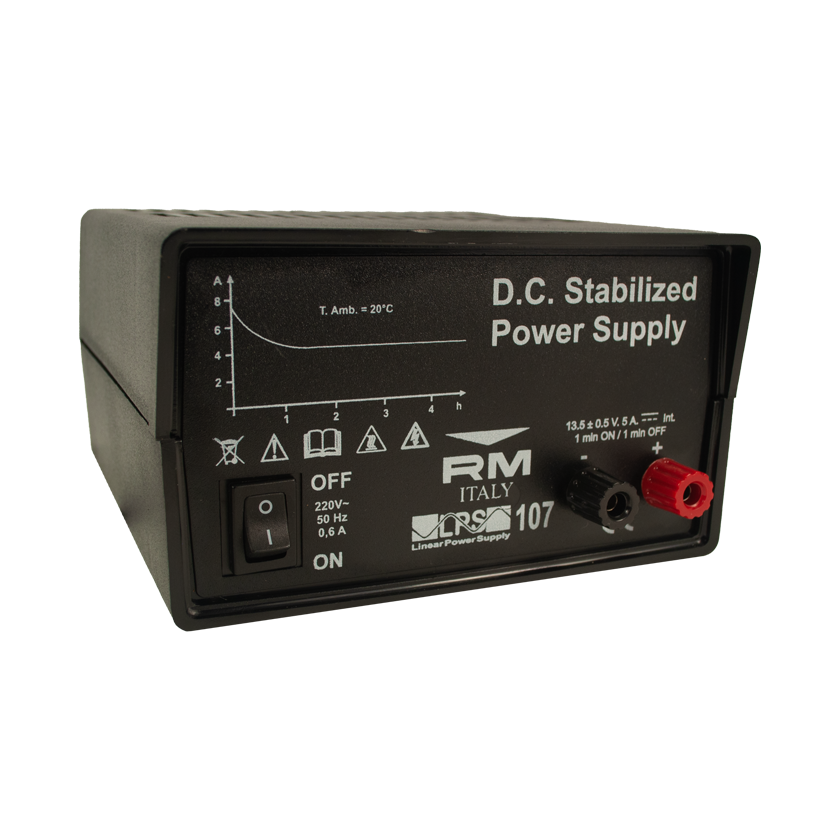

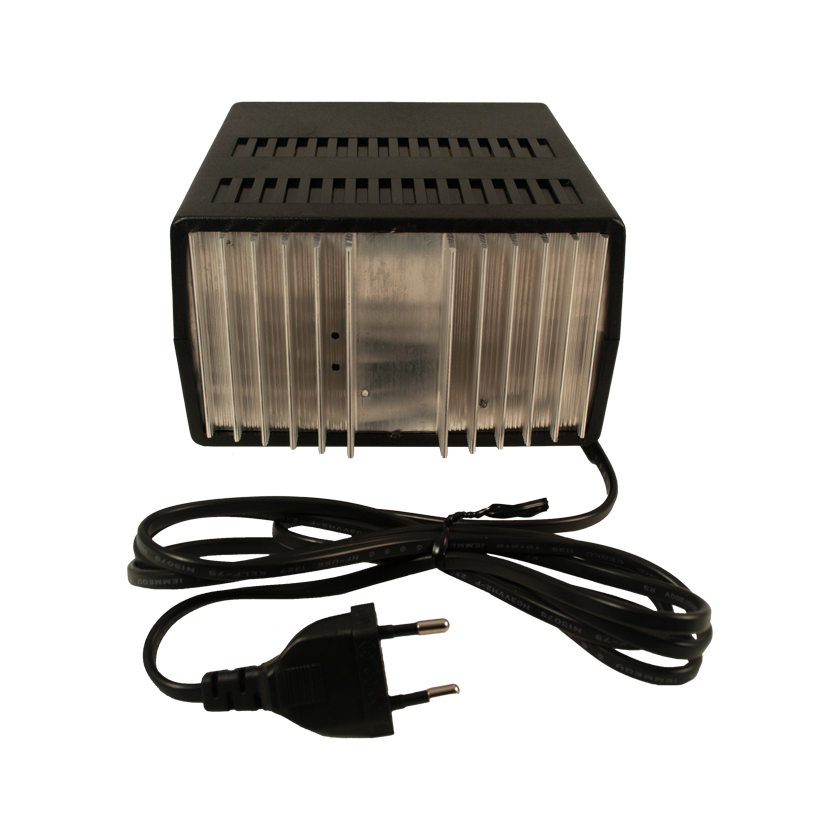

LPS 107
LPS 107 is a reliable linear high quality fixed output voltage stabilized power supply, suitable for use with all electronic and telecommunication devices.
Supplied with 230V power cable.
Technical Specifications :
- Supply : 230V
- Output Voltage: 13,5V ± 0.5V
- Continuous Load: 5 A
- Max Load : 7 A
- Fuse: 1.6A Fast 5×20mm
- Dimensions: L 185mm W 150mm H 90mm
- Weight : 2.1 Kg.
