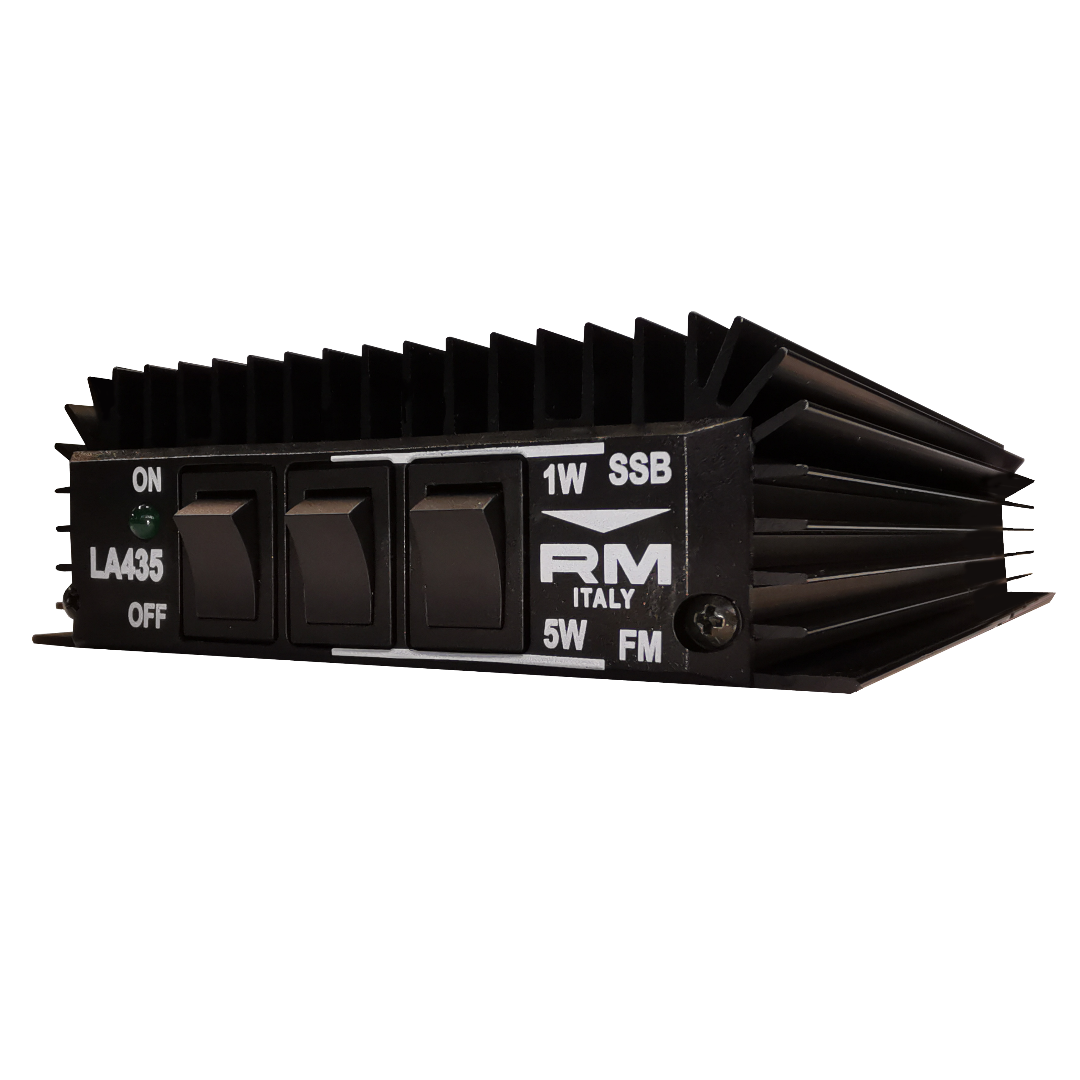

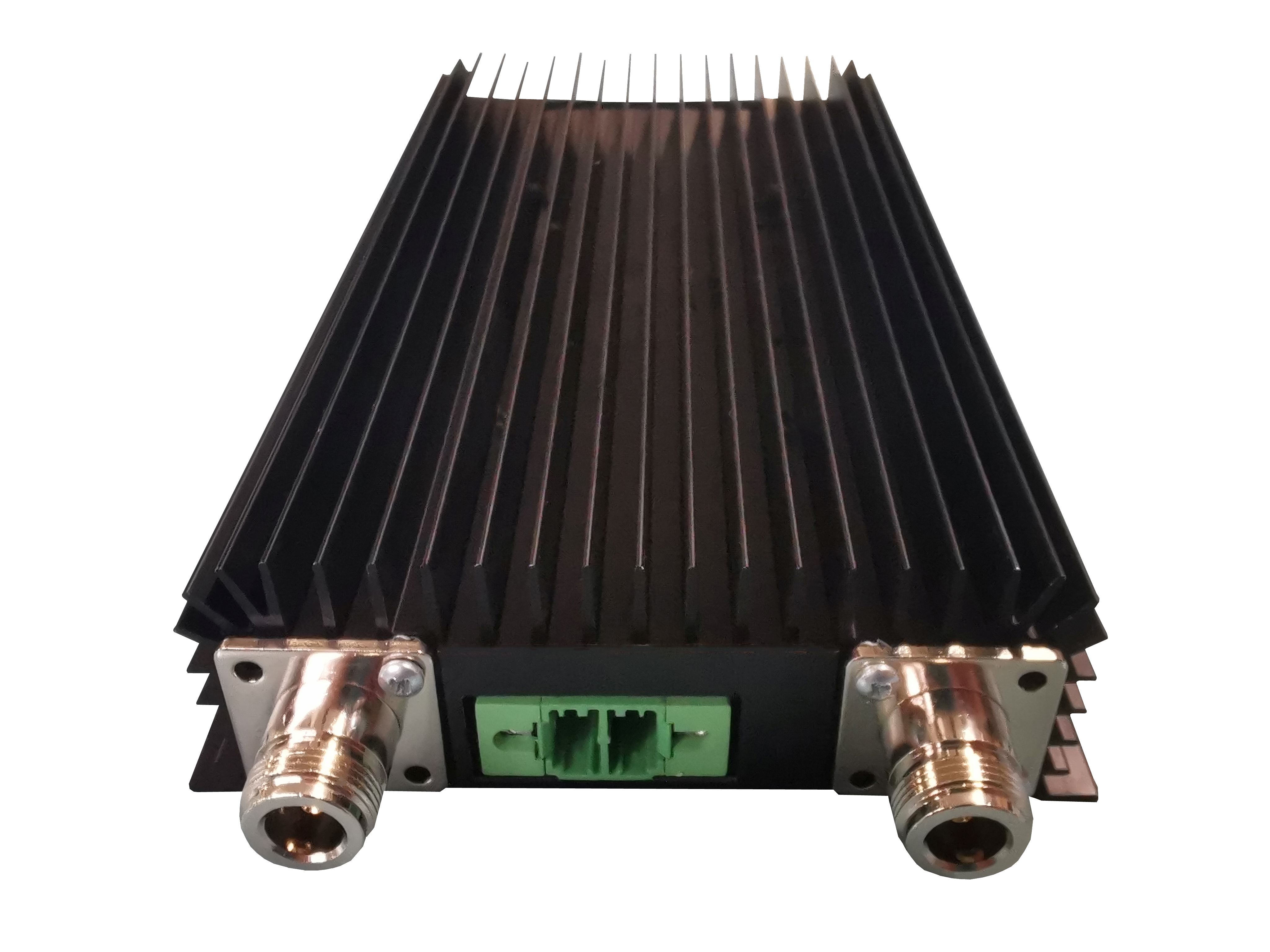

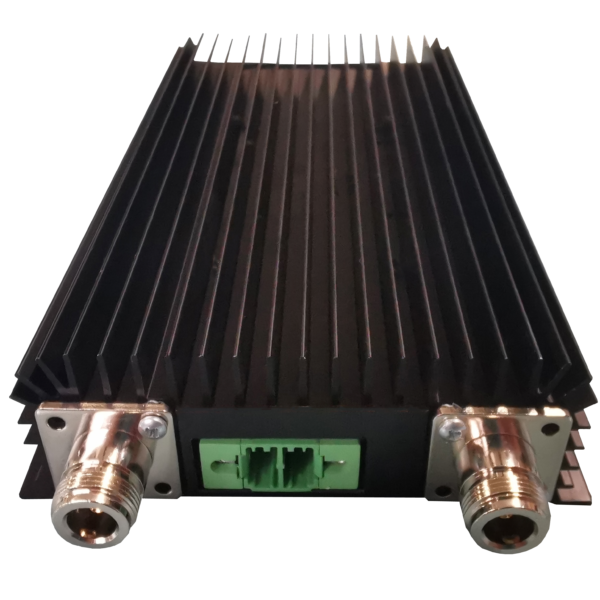

LA 435
The LA435 is a wideband compact amplifier for the UHF band; covering from 405 to 480 MHz. Output is nominal 60W at full power (70W max). Input drive from 1W to maximum of 5W, ideally suited to low power handheld transceivers. Output power depends both on input power and frequency of use. The graph illustrates the relationship between the two parameters.
Related products
The KL 405 is a 180Wmax 12V linear amplifier for use on the 10m Amateur Band, (or other HF bands with the use of a suitable Low Pass Filter). It requires a drive power of 1 to 10W in all modes. The KL 405 features a six position output power selector via a front panel control and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel.
The LA 144 is a 60W 12V linear amplifier for use in the VHF 135 – 175 MHz band, requiring an input power of 0.5 – 4 W maximum.
LA 145 is a 80W 12V linear amplifier for use in the VHF 135 – 175 MHz band, with an input power of 0.5 – 4 W maximum.
The KL 506 is a 230Wmax 12V linear amplifier for use in the 10m Amateur Band frequency, (or other HF bands with the use of a suitable Low Pass Filter). It requires a drive power of 1 to 10W in all modes. The KL 506 features a 26dB RX preamplifier with electronic switching, a three position RF Output power selector via a control on the front panel, and a connector for remote control. On the front panel there is also a LED wattmeter to indicate the output power.
